ASTM A106 Carbon Seamless Pipe

Seamless Steel Pipe,as the name suggests,is a pipe without a seam or a weld-joint.
Seamless Steel Pipes is a tubular section or hollow cylinder,usually but not necessarily of circular cross-section,used mainly to convey substances which can flow-liquids and gases(fluids),slurries,powders,powders and masses of small solids.

+86 13310652759

+86 13310652759

info@zgcysteel.com

◉ Product Details

Carbon Steel Seamless Pipes – it contains more carbon and iron in its composition. Depending on the grade, trace amounts of silicon, manganese, and copper are permitted in varying quantities. Therefore, the Carbon Steel Seamless Pipe material is stronger and is extremely resistant to stress. In heavy-duty facilities, these features make the pipes applicable.

Standard	ASTM A106, ASTM A53, API 5L Gr.B, DIN17175,DIN1629
Material	ASTM A106B, ASTM A53B, API 5L Gr.B,ST52, ST37,ST44SAE1010/1020/1045,S45C/CK45,SCM435,AISI4130/4140
Outer diameter	21.3mm-609.6mm
Wall thickness	1.5mm-50mm
Length	1m-12m, as the clients' requests
Technology	Hot Rolled
Tolerance	Control with in the standard, OD:+/-1%, WT:+/-5%
Advantages	1.Short delivery time
	2.Quality assurance
	3.Competitive price
	4.Free Sample

API 5L	for use in conveying gas, water, and oil in the natural gas and oil industries, and covers seamless and welded steel line pipe.
API 5CT	for casing and tubing
ASTM A53	for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless
ASTM A106	for Seamless Carbon Steel Pipe for High-Temperature Service
ASTM A179	for Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
ASTM A192	for Seamless Carbon Steel Boiler Tubes for High-Pressure Service
ASTM A213	for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A252	for Welded and Seamless Steel Pipe Piles
ASTM A333	for Seamless and Welded Steel Pipe for Low-Temperature Service and Other Applications with Required Notch Toughness
ASTM A672	for Electric-Fusion-Welded Steel Pipe for High-Pressure Service at Moderate Temperatures
ASTM A335	for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service
DIN 17175	seamless steel pipes are used in boiler installations, high-pressure pipelines and tank construction and special machinery for both high temperature and high-pressure devices.
DIN 1629	specifies the Seamless Circular Tubes of Non Alloys Steels with Special Quality Requirements.
DIN 2391	for Cold Drawn High Precision Seamless Tube
DIN 2458	Welded Steel Pipes in Unalloyed and Low Alloy Steels for Supply Purposes
EN 10210	Seamless steel tubes for pressure purposes
BS 3059	Steel boiler and superheater tubes
JIS G3454	Carbon steel pipes for pressure service

Chemical Properties

specification

Grade

Chemical Composition [%]

Min

Max.

Min

Max.

Min.

Max

Min.

Max

Min.

Max

Seamless pipe Including:Carbon Steel Pipe, Seamless Line Pipe, Boilers Tubes, Structural Steel Pipe, Precision Steel Pipe, Alloy Steel Pipe, Nickel Alloy Pipe

According to the production method, the seamless pipe is divided into a hot rolled pipe, a cold rolled pipe, a cold drawn pipe, an extruded pipe, a top pipe etc.

According to the shape of the section, the seamless steel pipe is divided into two types: a circular shape and an irregular shape, and the shaped pipe has a square shape, an elliptical shape and the like.

The maximum diameter is 650mm and the minimum diameter is 0.3mm.

Seamless steel pipe is mainly used as petroleum geological drilling pipe, cracking pipe for petrochemical industry, boiler pipe, bearing pipe and high-precision structural steel pipe for automobile, tractor and aviation.

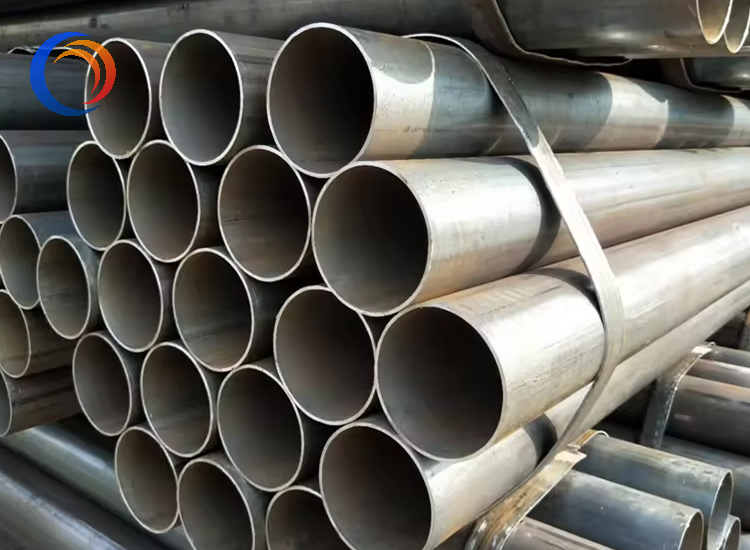

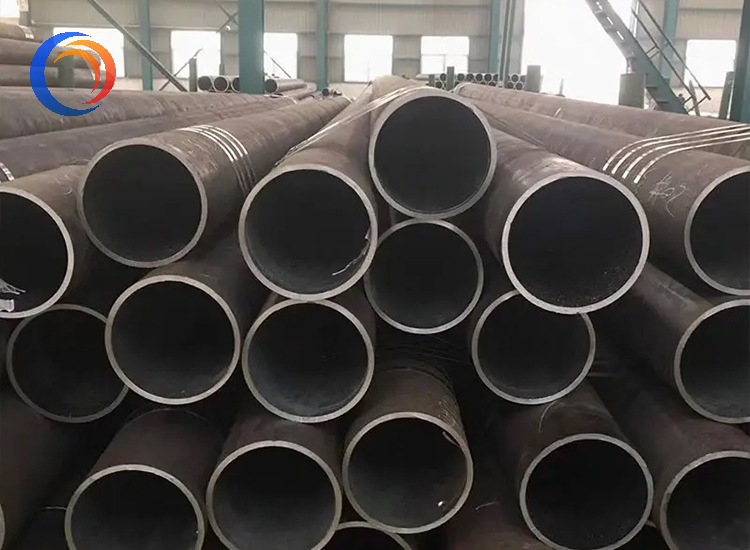

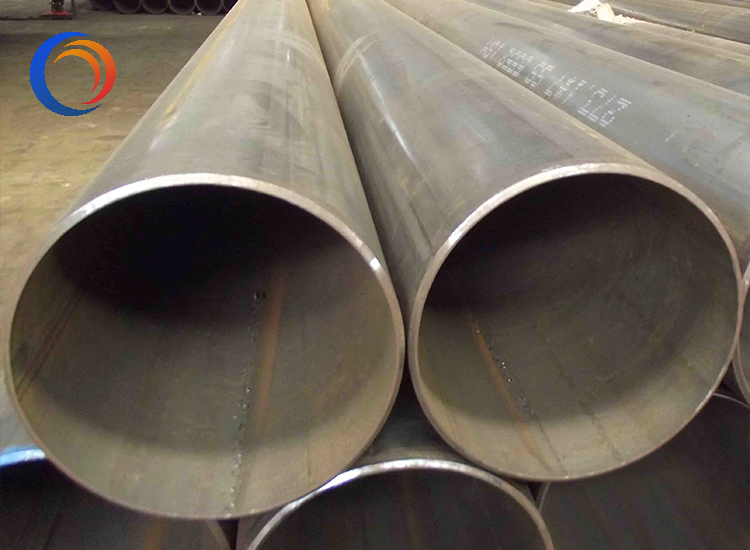

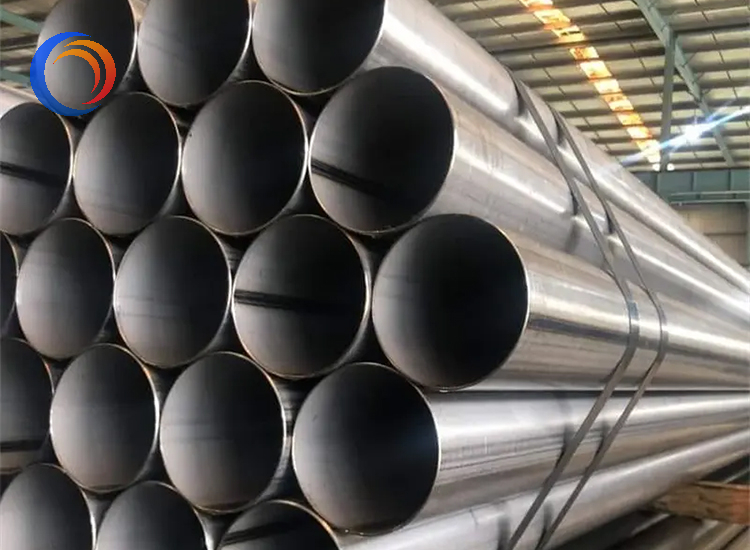

◉ Product Show
