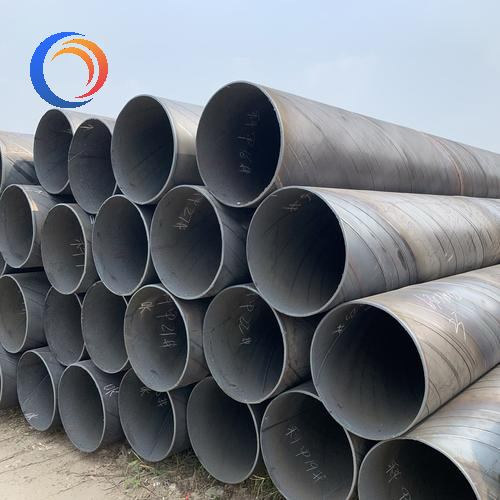

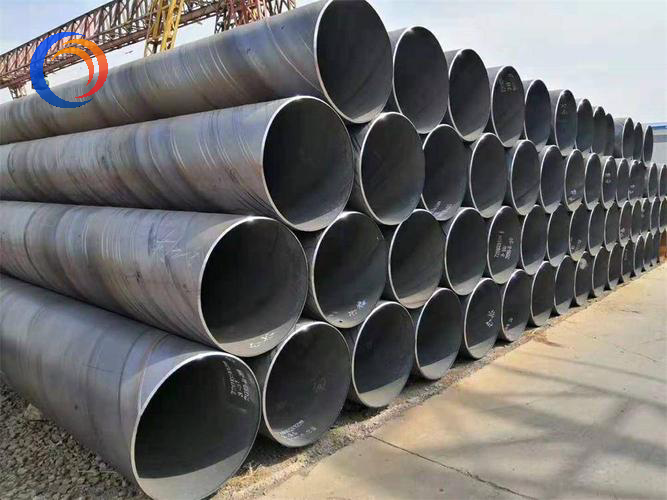

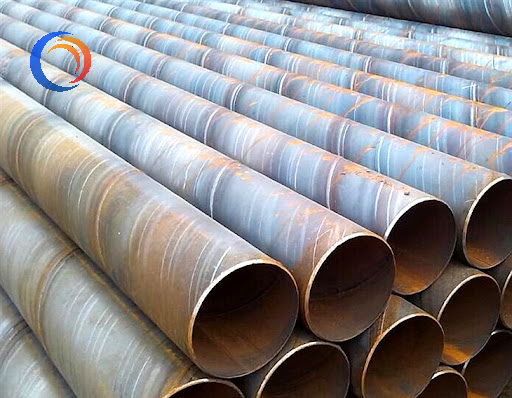

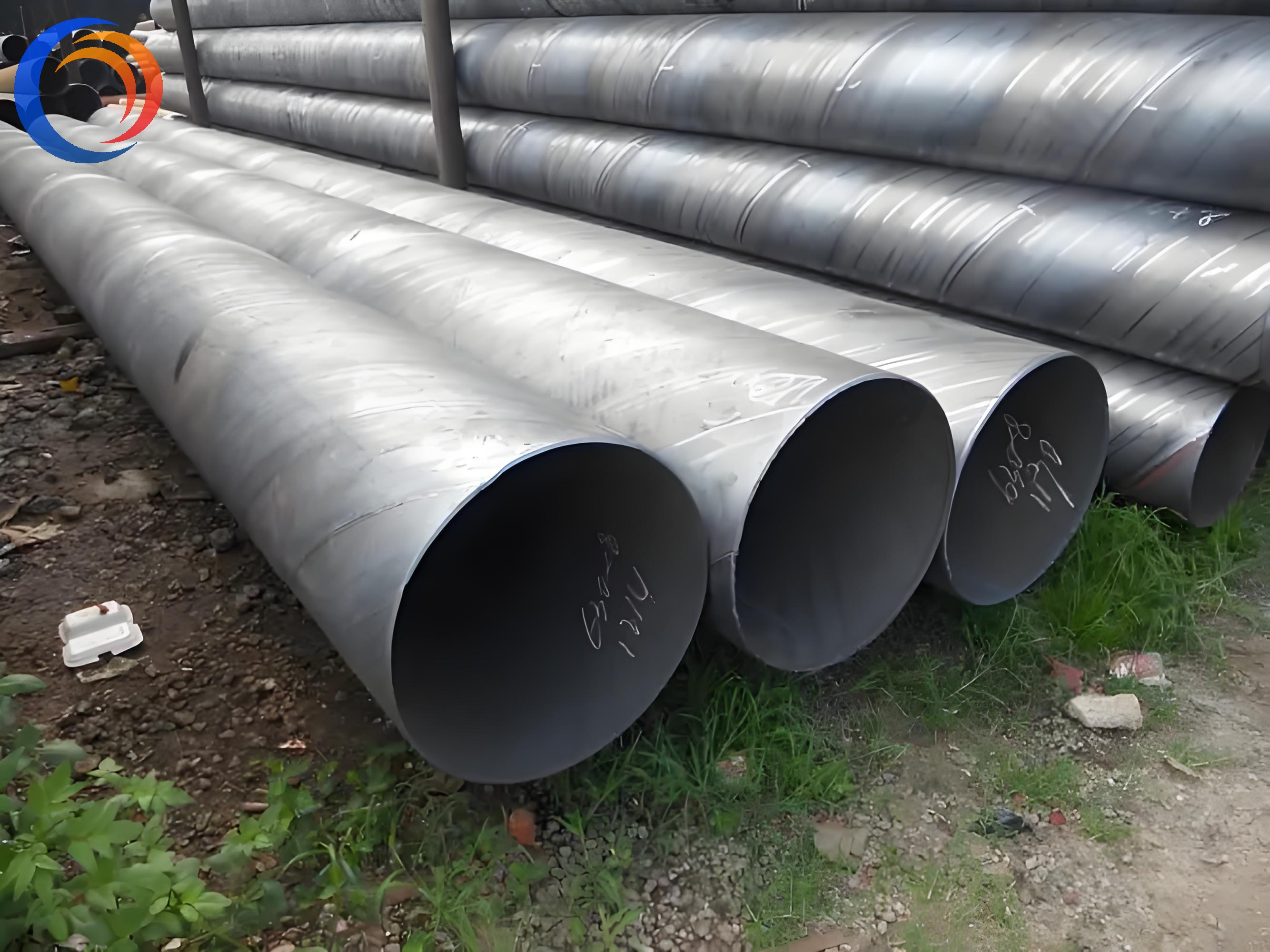

ASTM A53 Spiral Tube
The carbon steel seamless steel pipe is made of a whole piece of metal and has no seam on the surface.According to the production method,seamless pipes are divided into hot tube, cold-rolled pipe, cold-drawn pipe, extruded pipe, pipe jacking and so on. The carbon seamless steel pipes are mainly used as drilling pipes for petroleum geology, cracking pipes for petrochemical industry, boiler tubes, bearing pipes and high-precision structural steel pipes for automobiles, tractors and aviation.
+86 13310652759
+86 13310652759
info@zgcysteel.com
Contact Us

◉ Product Details

SpecificationOD: 219-2032mm       WT: 1.2-30mm
TechniqueSSAW (spiral submerged arc process)
MaterialAPI 5L / A53 GR BQ195 Q235 Q345S235 S355
Surface treatmentExternal: 3PE, bitumen, epoxy powderInternal: Epoxy, bitumen, cement
NDT testingHydrostatic testUT testRT test
End treatmentBevel


DNEpoxy coating/umAdhesive coating/umMinimum thickness for PE coating(mm)



CommonEnhanced
DN≤100≥120≥1701.82.5
100

2.02.7
250

2.22.9
500≤DN<800

2.53.2
DN≥800

3.03.7


External Single-layer Epoxy Executive SY/T0315

NumberCoating levelMinimum thickness(um)
1Normal level300
2Reinforce level400


Internal FBE Executive SY/T0442

Pipeline operation requirementsInternal coating thickness(um)
Drap reduction pipeline≥50
Anti-corrosion pipelineNormal≥250
Reinforce≥350

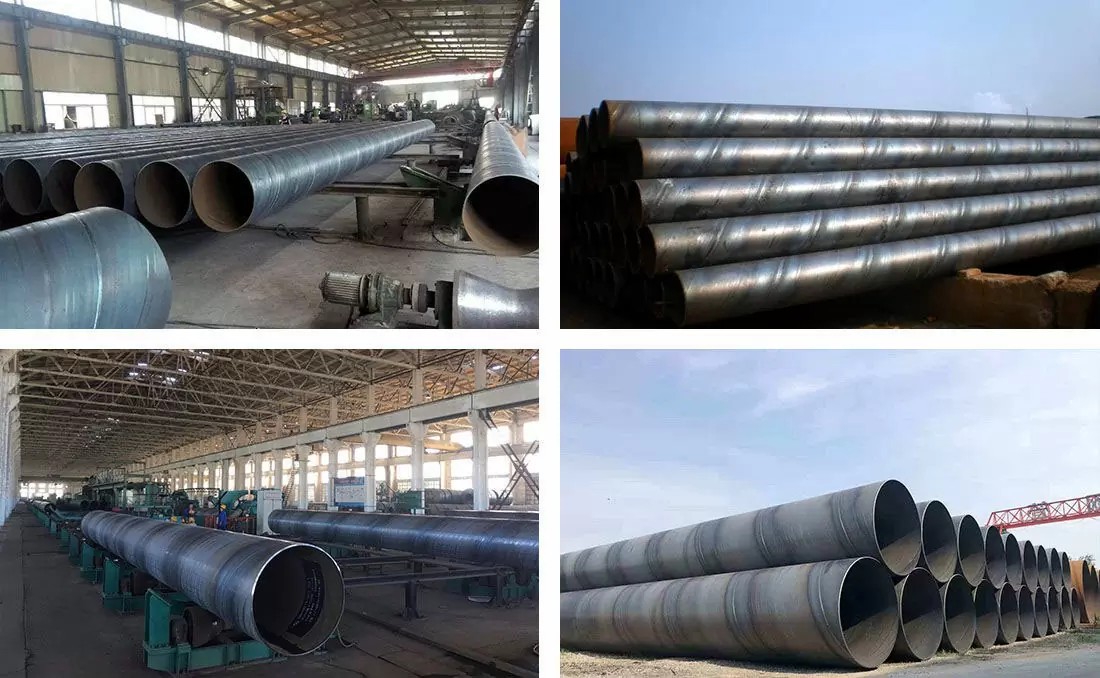

◉ Product Show
